Description
Overview

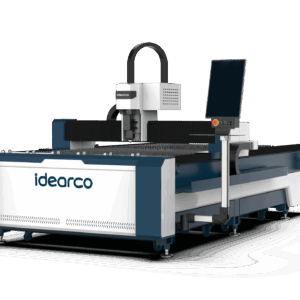

The FLC-T Series is a laser cutting machine for sheets and tubes that combines two processes in a single machine, reducing acquisition costs and floor space by up to 50%. Its open design and simple platform offer clear visibility of the cutting process, making it ideal for cutting thin sheet metal (≤20mm) and small to medium diameter tubes.
✅ Key Benefits
-
Dual Functionality: Sheet and tube cutting in a single machine.
-
️ Compact Design: Saves space and reduces purchase costs.
-
Built-in CNC System: With a low failure rate.
-
High Precision: ±0.05 mm positioning accuracy.
-
International Certifications: CE and FDA.
⚙️ Technical Specifications
| Feature | Detail |
|---|---|
| Available Laser Power | 1.5 – 6 kW |
| Compatible Sheet Sizes | 3050×1530 / 4050×1530 / 4050×2030 / 6050×1530 / 6050×2030 mm |
| Maximum Tube Length | 6000 mm |
| Supported Tube Diameter | 20 – 220 mm |
| Positioning Accuracy | ±0.05 mm |
| Repositioning Accuracy | ±0.02 mm |
| Max. No-Load Speed | 100 m/min |
| Max. Sheet Platform Load | 700 / 950 / 1250 / 1400 / 2000 kg (depending on model) |
| Max. Acceleration | 1G |
| Overall Dimensions | From 8500×3740×2100 mm to 8800×4200×2100 mm (depending on configuration) |
Applications
Ideal for:
-
Light metal structure manufacturers
-
Metal furniture industries
-
Signage and display companies
-
Precision cutting of structural pipes
Ready to Transform Your Production?
Request a quote or ask for more information now.
